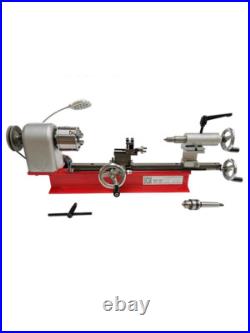

Miniature Lathe Desktop Small /Instrument Lathe /Metal /Watches /Woodworking

Copper, aluminum, plastic, 45# steel, stainless steel and other metals. Wood can be made: wooden beads, wooden bowls, prayer beads, Xingyue Bodhi, wooden gourd, etc. Animal products such as animal bones, horns, and animal teeth can also be processed.

Three-jaw chuck is used to clamp cylindrical regular parts. The four-jaw chuck is used for clamping cylindrical parts or irregular square parts.

(Choose according to your needs). 80 chuck metalworking chuck clamping range: positive jaw: 1-22mm, reverse jaw: 2263mm. Turning tools and tool holders. It can be equipped with 88mm or 1010mm turning tools. (Supplementary note: turning tool holder is 1414mm, fixed length is 30mm; tools within 1414mm can be installed).

The tool holder that comes with this lathe can be angled (conical surface can be turned). Mini lathe, configuration: 80 cast iron integrated spindle and 80 metalworking card. Processing material: copper, aluminum, 45# steel, plastic, wood. Maximum workpiece length that can be processed: 200mm. Maximum rotating diameter of the bed: 180mm.

Maximum rotating diameter of horizontal carriage: 110mm. Taper of tailstock sleeve: MT1.
